Web Design Spacing and Sizing Best Practices
- Kerri Cuthbert
- Sep 25
- 17 min read
Web designers often struggle with how to size content and space elements consistently. Issues like max container width, section padding vs. margins, text sizing, and spacing in stacks of text and images can feel like a minefield. This guide lays out a step-by-step, platform-agnostic approach to mastering layout basics – from using a spacing grid (like the 4px/8px rule) to choosing the right CSS units (px, %, vw, vh, etc.). By following these best practices (with handy reference grids and diagrams), you can create balanced, readable, and responsive designs.
Establishing a Base Spacing System (4px vs. 8px Grid)
One of the first steps is to decide on a consistent base unit for spacing in your design. The most common recommendation is an 8px grid – meaning all dimensions, padding, and margin values are multiples of 8 (8, 16, 24, 32, etc.). The reason 8px is so popular is that it’s highly divisible (half is 4, quarter is 2), aligning well with many screen resolutions and making it easy to scale designs up or down. For example, an 8px base allows you to use half-steps (4px) for fine adjustments, whereas a 10px base would produce awkward 5px or 2.5px gaps. Major design systems (Google Material Design, Apple’s guidelines) also endorse the 8pt/px grid for consistency.
That said, some designers prefer a 4px grid for greater granularity. The 4px system simply uses 4 as the increment (4, 8, 12, 16, etc.), which can be helpful for very dense interfaces or precise alignments. In practice, an 8px grid often suffices for overall layouts, with the option of using 4px as a “half-step” for small elements (icons, tight spaces). The key is to pick one base unit and apply it consistently. This base will underpin your entire design’s spacing scale, reducing guesswork and ensuring visual harmony.
Pro Tip: Define spacing tokens or variables for your base multiples (e.g. XS = 4px, S = 8px, M = 16px, L = 32px, XL = 64px). This way, designers and developers share a common language for spacing values. It speeds up handoff and prevents arbitrary values from creeping in.
Setting Max Width for Content Readability
Ever visited a website where text stretches in one long line across a huge screen? Excessive line width makes content hard to read. As a rule of thumb, limit the width of long text blocks to enhance readability. Typographic research and accessibility guidelines suggest an optimal line length of about 50–75 characters per line (including spaces) for body text. In fact, the Web Content Accessibility Guidelines (WCAG) recommend a maximum of 80 characters per line for accessible reading. Longer lines can cause readers to lose focus or have difficulty tracking back to the start of the next line.
In practical terms, this often translates to a max content width around 700–800px on desktop for paragraphs (assuming a ~16px base font). Many designers use a container of roughly 60–75ch (ch = width of the "0" character) or about 40–50rem (if 1rem = 16px) to enforce this limit, which yields roughly the recommended character count. For example, setting max-width: 70ch; on a text container is a quick way to ensure lines don’t exceed ~70 characters.
On large screens, you can center this container so margins on either side absorb extra space. Frameworks often use a maximum grid width (e.g. 1200px or 1440px) for the main content – any wider, and they simply increase the side margins. This maintains focus. One UX guideline is to keep text columns roughly 700–850px wide; anything wider “is hard to track” for the reader. On the flip side, avoid making text columns too narrow on desktops – if only ~30 characters per line, reading feels choppy with too many line breaks. Strive for a happy medium by using CSS max-width to cap the container width but allowing it to shrink for smaller screens.
Best Practice: Use responsive units or media queries for container widths. For example, you might use a percentage width for fluid layouts but also a max-width in px to stop it from growing too wide. A container might be defined as: .container { width: 90%; max-width: 800px; margin: 0 auto; } – this makes it fluid on small devices but limited to 800px on large screens, with auto side margins to center it.
Internal vs. External Spacing (Padding vs. Margin)

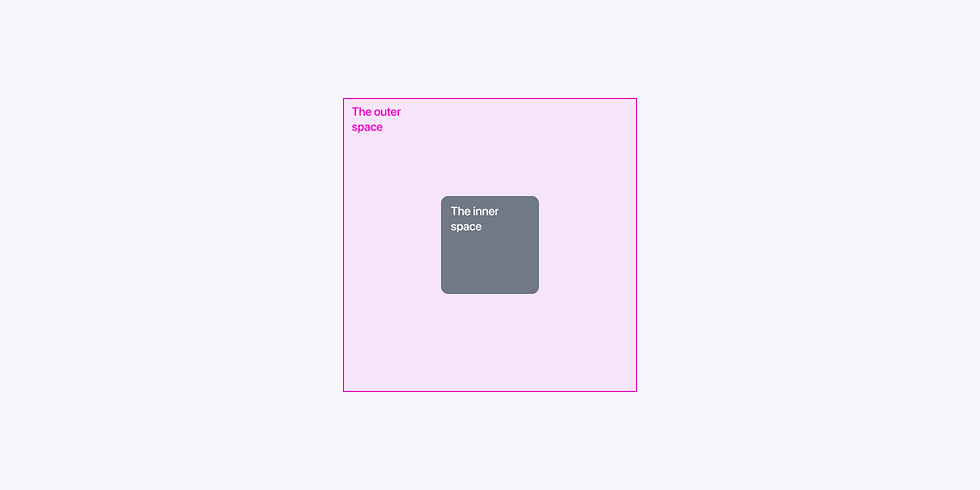

When building page sections or UI components, distinguish between internal padding (space inside a component/section) and external margin (space outside, separating it from other elements). A useful guideline is the “internal ≤ external” rule, meaning an element’s outer spacing should be equal to or greater than its inner spacing. In essence, the margin around a block should be at least as large as the padding inside it, often larger. This creates clear visual separation between different sections or groups, and keeps components from looking cramped together.
This concept is rooted in Gestalt psychology’s law of proximity: elements that are closer together are perceived as a group, while larger gaps suggest separation. By controlling padding and margins, you control what appears grouped vs. independent. For example, consider a card component with 20px padding inside. If you place two such cards next to each other, you’d want a margin (or grid gutter) between them of at least 20px, if not more (say 24px). That way, each card feels like its own unit, and there’s clear “breathing room” around them. If the margin were smaller than the padding, the cards would visually merge together, confusing the grouping.
Section Padding: For page sections (like a homepage hero, a features block, etc.), designers often use generous padding inside the section (e.g. 60px top and bottom) but still maintain a larger margin (spacing) before the next section starts. A good practice is to have larger spacing between sections than between elements within a section – this hierarchy of space signals what belongs together. Many design systems explicitly say external space ≥ internal space to ensure sections are distinct.
Internal = Padding: adds space inside an element’s border/background. Use it to keep content from touching edges.
External = Margin: adds space around the element. Use it to separate it from neighboring elements.
By applying the internal ≤ external rule, you achieve a consistent rhythm: items inside a card are snugly related, but the card itself sits apart from other cards or sections. If in doubt, err on the side of more outer space to avoid overcrowding.
Text Sizing and Vertical Rhythm
Choosing units and scales for text size is another critical part of web design. Rather than using only fixed pixel sizes, best practice is to use relative units for typography so that text can adapt to different screens and user settings. Commonly, you’ll define base font size in the browser (often 16px by default) and use rem (root em) or em units for fonts. For example, if the body font is 16px (1rem), setting a heading to 2rem makes it scale relative to that (roughly 32px) – but if a user zooms text or if you change the base size for a smaller device, the heading scales accordingly. Using rem/em for fonts (and even for spacing) ensures your design is more scalable and accessible. (Pixels are absolute – 16px stays 16px no matter what – which can be problematic on very high DPI screens or if the user has a larger default font setting.)
For body text, 1rem (default ~16px) is a common starting point. Large headings might be 2–3rem, subheadings ~1.25rem, etc. Modern responsive design often employs techniques like fluid typography – e.g. using clamp() in CSS to interpolate font sizes between a min and max based on viewport width. Even if you use such advanced methods, it’s still wise to think in relative terms (like base size ± scaling factor) rather than hardcoding a bunch of pixel values.
Line Height & Vertical Spacing: Good typography isn’t just font size – it’s also the spacing between lines (line-height) and between paragraphs or other text elements. This is where the concept of a vertical rhythm or baseline grid comes in. Just as we use a horizontal grid for layout, a baseline grid (say, 4px or 8px increments vertically) helps align text lines and element heights consistently. A simple rule: set your text line heights to a multiple of your base unit (for example, an 8px grid might use a 24px line height for 16px text, since 24 is a multiple of 8). This way, if you draw horizontal guide lines every 8px, the baselines of text will sit on those lines, preventing awkward “in-between” alignment. Many design systems use a 4pt increment for line height even if spacing is 8pt, to allow finer tuning (e.g. a 16px font might use a 24px line height which is 3×8, whereas a 14px font could use a 20px line height which is 5×4.
For body copy, a line-height around 1.4 to 1.6 (140–160%) of the font size is common for readability. Ensure paragraph spacing (margin-bottom on paragraphs) is larger than the line spacing so that separate paragraphs are clearly separated. For instance, if line-height is 1.5, you might set a paragraph’s bottom margin to 1.5× that (effectively leaving a blank line). This ties back to the internal/external rule: the space between lines of one paragraph (internal leading) is smaller, while the space between paragraphs (external gap) is larger, signaling a break in content.
When placing text next to other elements (like headings, lists, or images), keep an eye on consistent spacing. Use your base unit multiples – for example, maybe you decide that headings have 16px (2×8) margin below, paragraphs have 8px, and section titles have 24px above them. By using the 4/8px grid, these values will naturally harmonise.
The end goal is a rhythmic flow down the page: equal spacing where elements are peers, larger spacing where there’s a section break, etc., all following a consistent scale.
Tip: To maintain vertical rhythm, you can even apply a subtle baseline grid overlay in design tools or during development. This is a series of horizontal lines (say every 8px) that you align text to. This helps catch if a line of text or an image is sitting off the grid. If everything – font sizes, line heights, spacing – is a multiple of the base unit, your content will naturally snap to this grid, resulting in a tidy, balanced look.
Stacks of Content: Spacing Between Text and Images
In web layouts, content often flows in vertical “stacks” – think of a blog post with headings, paragraphs, images, quotes, etc. Managing the spacing in these stacks is crucial for clarity. A common mistake is inconsistent gaps, like an image jammed against text in one place and too far in another. To avoid this, incorporate images and media into your spacing system as well.
Treat images as block elements that need margins (external space) just like any other block of content. For example, if your design uses an 8px base, you might give an image a bottom margin of 16px or 24px so that the text that follows isn’t right up against it. The idea is to ensure a visual buffer around images so they don’t collide with neighboring text or graphics. This is especially true if text wraps around an image (like an image floated in a paragraph) – you’d typically add some margin on the side so the text isn’t flush to the image.
The inner vs. outer spacing principle we discussed applies here too: the whitespace between an image and surrounding text should be clearly larger than the normal spacing between lines of text. If your paragraph line height is, say, 1.5 (about 8px of actual gap), then an inline image should have more than that as padding around it, otherwise the text will look uncomfortably tight near the image. In practice, a margin of one or two base units (e.g. 8px or 16px) around an image often works well to separate it.
Also consider captions or labels for images – those should be consistently spaced relative to the image (often a bit of padding inside a figure or a fixed small gap). A systematic approach might be: all images have, say, 24px margin-top and bottom, and if a caption is present it sits, for example, 8px below the image, with the 24px to the next block of content coming after the caption. Consistency is key; define these rules once and use them throughout.
When stacking different types of content (text, image, heading, list, etc.), always refer back to your spacing scale. For instance, you might decide a standard vertical gap between any two sections is 32px (4×8), between a section title and the content under it is 16px (2×8), and between related items (like list items) is 8px (1×8). This creates a clear information hierarchy. Readers will subconsciously group things that are closer together and separate those farther apart. Use that to your advantage: for example, a small space between an image and its caption groups them, while a larger space after the caption separates it from the next paragraph.
Remember that consistency reinforces meaning. If every image has the same bottom margin, the reader will feel a consistent rhythm as they scroll. If every section ends with, say, a 40px gap before the next section heading, the reader intuitively knows a big change or new topic is coming. By using the rule of consistent multiples for all these spacings, you ensure that the design not only looks tidy but also communicates structure without needing explicit markers.
Note: The spacing principles for text apply to other elements too. The concept of inner and outer spacing isn’t limited to paragraphs – it applies equally to images, cards, buttons, and any other block in the layout. Always give elements room to breathe according to their role. Interactive components (buttons, form fields) also benefit from consistent spacing in forms or dialogs, often using that same base grid.
Laying Out Columns: Grids and Fractional Units
So far we’ve focused on vertical spacing and single-column content flow. But modern web design often uses multi-column layouts – whether it’s two columns of text, a sidebar and main content, or a complex grid of cards. The classic approach is the 12-column grid system, which is popular because 12 can be divided into many fractions (halves, thirds, quarters, sixths, etc.). Designers and frameworks love 12 columns since it offers flexibility: you can span 6/12 for half width, 4/12 for one-third, 3/12 for one-quarter, and so on, all yielding whole numbers.
When dividing a layout into columns, consistent spacing is managed by gutters – the space between columns. Gutters are essentially the horizontal equivalent of margins between elements. Just like our vertical spacing, gutters should ideally be aligned to the base grid (e.g. 16px or 24px). For instance, if you choose a 24px gutter between columns, stick with that across the layout (or use a predictable pattern like 16px on mobile, 24px on desktop if screen size allows). The goal is that the whitespace between columns is uniform, so the design feels balanced.
In a CSS context, you can create columns in various ways:
Using CSS Grid with fractional units (the fr unit) is very handy. For example, grid-template-columns: 1fr 1fr 1fr would create three equal columns that automatically share the available space. Fractions are great because they adjust fluidly but maintain equal ratios.
Using percentages is the traditional approach (e.g., 33.33% for three columns, 50% for two columns, etc.). If you go this route, account for gutters by either using CSS Grid’s gap property or by subtracting margins appropriately. Many frameworks set column widths in percentages and add padding within columns as half-gutters so that when two columns sit side by side, the space between them totals one gutter.
Using Flexbox is another method (each flex item can grow equally, etc.), but for multi-column page layouts, CSS Grid’s explicit grid system is often more straightforward.
Regardless of method, the sum of columns + gutters should fill the container width. For example, in a 12-column grid, you might have 12 columns each 68px wide with 11 gutters of 24px (plus outer margins). If you shrink to a 2-column layout on mobile, you might simply make each column span 6 of the 12 grid columns (i.e. 50%). Many responsive design systems use breakpoints where the number of columns changes – e.g., 12 columns on desktop, 8 on tablet, 4 on mobile, or similar. The content “snaps” to new column spans at certain widths, always adhering to the defined column + gutter sizes for that breakpoint.
A key best practice is to define your grid and spacing tokens upfront – how many columns, what gutter width, and what the container margins are. For example: “We use a 12-col grid, 24px gutters, and a 1200px max container with 60px side margins on desktop.” With this defined, everyone on the team knows the rules. Then use fractional or percentage units to implement this in code. For instance, max-width:1200px; padding: 0 60px; on a container, and for columns, if using CSS Grid: grid-template-columns: repeat(12, 1fr); grid-column-gap: 24px; – then a element meant to span 4 columns can be given grid-column: span 4.
When you use fractions (fr units), the browser does the math of distributing space. If you have uneven columns (say a sidebar layout 1/3 + 2/3), you could do grid-template-columns: 1fr 2fr; – the second column automatically gets twice the space of the first, regardless of container width. This is often more intuitive than calculating percent (which would be 33.33% and 66.67% in this case). The result is the same, so choose whichever approach is comfortable.
Fraction vs. Fixed: Not everything should be fluid. Sometimes setting one column in px and another in fr is useful – e.g., a sidebar might have a fixed max width, and the main content column takes the remaining space. CSS Grid’s minmax() function can handle this (e.g., grid-template-columns: minmax(200px, 300px) 1fr; for a sidebar that shrinks to 200px if needed, but can grow to 300px, and the content always gets the rest). The main takeaway is to use the grid to enforce consistent column widths and gutter spacing, rather than placing elements arbitrarily.
In summary, by using a grid system, you create an underlying structure that keeps your layout coherent. It removes a lot of guesswork – elements line up vertically in columns, and you already know how wide things should be and how much space is between them. A well-applied grid means even complex pages (with forms, sidebars, media, etc.) retain a sense of order.
Choosing the Right Units: px, %, vh, vw, and More
Finally, let’s discuss the various CSS units (px, %, vh, vw, etc.) and when to use each, as this is crucial for implementing the above practices in a responsive way:
Pixels (px): Pixels are absolute screen units. Use px when you need a fixed size that doesn’t scale with anything else (e.g., a 1px border or a max-width breakpoint like 1200px). Pixels are precise, but remember they don’t automatically adapt to user preferences (e.g. if a user has set a larger base font in their browser, a font defined in px won’t respect that). For layout containers, px can be useful for max/min widths (e.g. max-width: 1200px as discussed) or for small elements that should stay a specific size. However, avoid relying solely on px for things like font sizes across the site – combine with relative measures for flexibility.
Percentages (%): A percentage is always relative to another value (like parent element’s width or font size for text). Percentages shine for fluid layouts – e.g., setting a div to width: 50% makes it always half the width of its parent, which is great for responsive behavior. Use % for column widths (as an alternative to fr units) or images (e.g. max-width: 100% on images makes them scale down with the container). If you set padding or margin in %, it will be relative to the element’s width by default (which can be confusing; it’s used sometimes for aspect ratio hacks). Most often, use % for widths and sometimes for heights in fluid designs. For example, a full-width banner might be width:100% (span full container) and an aside might be width:25% to take a quarter of the space.
Viewport Units (vh, vw): These units are relative to the viewport (browser window) size – 1vw is 1% of viewport width, 1vh is 1% of viewport height. They are powerful for making things sized relative to the screen. For instance, a hero section often uses height: 100vh to fill the full height of the viewport. Typography can even use vw for a scalable effect (like font-size: 5vw makes text size scale with screen width). However, use these with care. A common pitfall is using 100vh on mobile and encountering issues (mobile browsers have UI bars that can make 100vh behave oddly, causing overflow). Also, text that scales purely with vw/vh can become too small on small screens or too large on huge monitors. The best practice is to combine viewport units with min/max constraints (e.g., using CSS clamp() or media queries) so you don’t go beyond readable sizes. In short, vh/vw are great for large-scale layout elements (full-screen sections, responsive typography, etc.), but test across devices.
Min/max Width (and Height): These aren’t units per se, but properties to impose limits. Use max-width to prevent containers or images from growing too large (as discussed for content width). Use min-width to ensure an element doesn’t shrink too far. For example, a button might have a min-width of 120px so even if the text is short, the button is tappable and consistent. In responsive grids, min-width can trigger wrapping – e.g., flex items with a min-width will drop to the next line when they can’t satisfy that minimum, which is a useful technique for responsive columns without media queries. Generally, min-width is insurance against layout collapse, and max-width is a way to maintain readability and design integrity on big screens.
Relative Font Units (em, rem): While not explicitly asked in the list, these are worth mentioning for completeness. Rem (root em) is relative to the document’s root font size. Using rem for global sizing (margins, paddings, etc.) can make your whole design scale if the root size changes. For example, if your base font size is 16px = 1rem, and you define a card’s padding as 2rem (32px), then if on a certain device you bump base font to 18px, that padding automatically becomes 36px – preserving the relative proportion. Em is relative to the parent element’s font size, which is more often used in nested contexts (like making an icon 2em to be twice the size of the surrounding text). For consistent spacing scales, rem is typically easier to manage (since everything ties back to a single reference). The bottom line: using rem/em for text and even layout spacing improves accessibility – users who zoom or have custom settings will find your site more adaptable.
Other units: There are others like vmin, vmax (relative to smaller or larger side of viewport), but they are specialised. You might use vmin for something that should size relative to the smaller dimension (e.g., a square that always fits in screen). Also, CSS functions like calc() can combine units (e.g. calc(100% - 50px)), and clamp() can combine relative and absolute units to set adaptive min/ideal/max values – these are great for fluid yet bounded designs.
In practice, a well-structured approach might be: use rem for base font sizing and maybe padding/margin, use % or fr for grid widths, use px for fixed limits or tiny details, and use vh/vw for big sections or fluid text enhancements. For example, a modern responsive CSS might include:
html { font-size: 16px; } /* base font 16px = 1rem */
body { font-family: sans-serif; line-height: 1.5; margin: 0; }
.container { width: 90%; max-width: 1200px; margin: 0 auto; }
h1 { font-size: clamp(2rem, 5vw, 3rem); margin-bottom: 1rem; }
p { font-size: 1rem; margin-bottom: 1.5rem; }
.grid { display: grid; grid-template-columns: repeat(auto-fit, minmax(250px, 1fr)); gap: 24px; }
.card { padding: 1.5rem; }
In the above snippet, we see a mix: % and max-width for container, rem and vw in a clamp for font size (so it grows with viewport but not below 2rem or above 3rem), and the grid uses minmax with px and fr units for a responsive column pattern. This combination leverages each unit’s strengths as needed.
The key is to choose the right unit for the job. If you want something to scale with layout, use a relative unit. If you need a hard boundary, use px or a max/min property. And always test: check your design at different screen sizes and zoom levels to ensure the spacing and sizing remain comfortable.
Designing a balanced layout involves multiple pieces working in harmony: consistent base spacing (4pt/8pt grid), appropriate max width for content, clear internal padding vs. external margins, a sensible typographic scale with vertical rhythm, and logical spacing in both vertical stacks and horizontal grids. By following the “rules” – like using multiples of a base unit and maintaining internal ≤ external spacing – you reduce arbitrary decisions and create a cohesive visual system. The rule of 4s/8s gives you a flexible yet orderly toolkit for any situation, while fraction-based grids ensure responsive columns without guesswork.
In summary, start with a solid foundation (your grid and spacing tokens), apply them consistently to all elements (from text to images to entire sections), and use CSS units that make your design responsive by nature. Spacing and sizing will no longer feel like a minefield, but rather like a well-charted grid that guides the eye and enhances usability. With these best practices and a bit of practice, your web designs will not only look visually tidy but will also communicate content logically – providing that subtle sense of comfort and ease for your users that truly great designs achieve.
References:
Best practices for spacing and grid systems: cieden.comcieden.com
Optimal text widths for readability: baymard.comuxpin.com
8pt/4pt grid methodology: uiprep.comthedesignership.com
Internal vs. external spacing rule: cases.media
Responsive CSS unit usage guidelines: medium.commedium.com
These references among others, have informed the recommendations above. Each principle is backed by industry research and time-tested design system conventions to ensure your layouts are both user-friendly and developer-friendly. Happy designing!
